Repair: Samsung Galaxy A22 A225F Charging Paused Problem | Battery Temperature Error

0

Hello, mobile technician here is the full solution of Samsung Galaxy A22 A225F Charging paused battery temperature is too low problem repair solution in the below diagram you will find which thermometer is giving Samsung Galaxy A22 A225F Charging Paused Problem simply change the thermometer on by one and repair Samsung Galaxy A22 A225F Charging Paused Problem.

Samsung Galaxy A22 charging paused problem is known to be the most common one, and this is mainly because of the fact that a little bit of physical damage or water damage to the charging connector pin is enough to trouble with your phone’s charging connector. However, there could also be other reasons of this problem like a faulty charger or phone’s battery.

If your Samsung Galaxy A22 started having a charging paused error out of the blue, the first thing that you need to do is to see if there’s an issue with the charging port or accessories. This error can sometimes be caused by a faulty USB cable or adapter so if you haven’t checked yours yet, be sure to do so now. You can do that by using another official Samsung cable and adapter or charging another Samsung device using the current ones. Either way should help you tell if there’s a problem with your accessories.

Also, try to see if there’s any dirt, lint, debris, or foreign object in the charging port that may block the charging cable. The presence of dirt or debris in the port is the usual reason why charging may be unsuccessful. If you think that the port is dirty and it causes the charging paused problem, clean the port using a can of compressed air. Avoid sticking anything in the port to not damage the system.

Read More:-  Samsung Galaxy J7 Prime G610F Sim Card Ways Solution

Samsung Galaxy A22 Device Overview:

Samsung Galaxy A22 mobile was launched on 2nd June 2021. The phone comes with a 6.40-inch touchscreen display. Samsung Galaxy A22 is powered by an octa-core processor. It comes with 4GB, 6GB of RAM. The Samsung Galaxy A22 runs Android 11 and is powered by a 5000mAh battery. The Samsung Galaxy A22 supports proprietary fast charging.

As far as the cameras are concerned, the Samsung Galaxy A22 on the rear packs a quad camera setup featuring a 48-megapixel (f/1.8) primary camera; an 8-megapixel (f/2.2) camera; a 2-megapixel (f/2.4) camera, and a 2-megapixel (f/2.4) camera. The rear camera setup has autofocus. It has a single front camera setup for selfies, featuring a 13-megapixel sensor with an f/2.2 aperture.

Samsung Galaxy A22 A225F Charging Paused Problems

  • Charging Paused Massage
  • Battery Temperature Too Low.
  • Samsung Galaxy A22 heats up during charging.
  • No response when the charger is connected.

Samsung Galaxy A22 A225F Charging Paused Problem Repair Solution:

The Problem is the charging paused or we called a thermistor.
so you need to remove the thermistor or replace it from the other board.

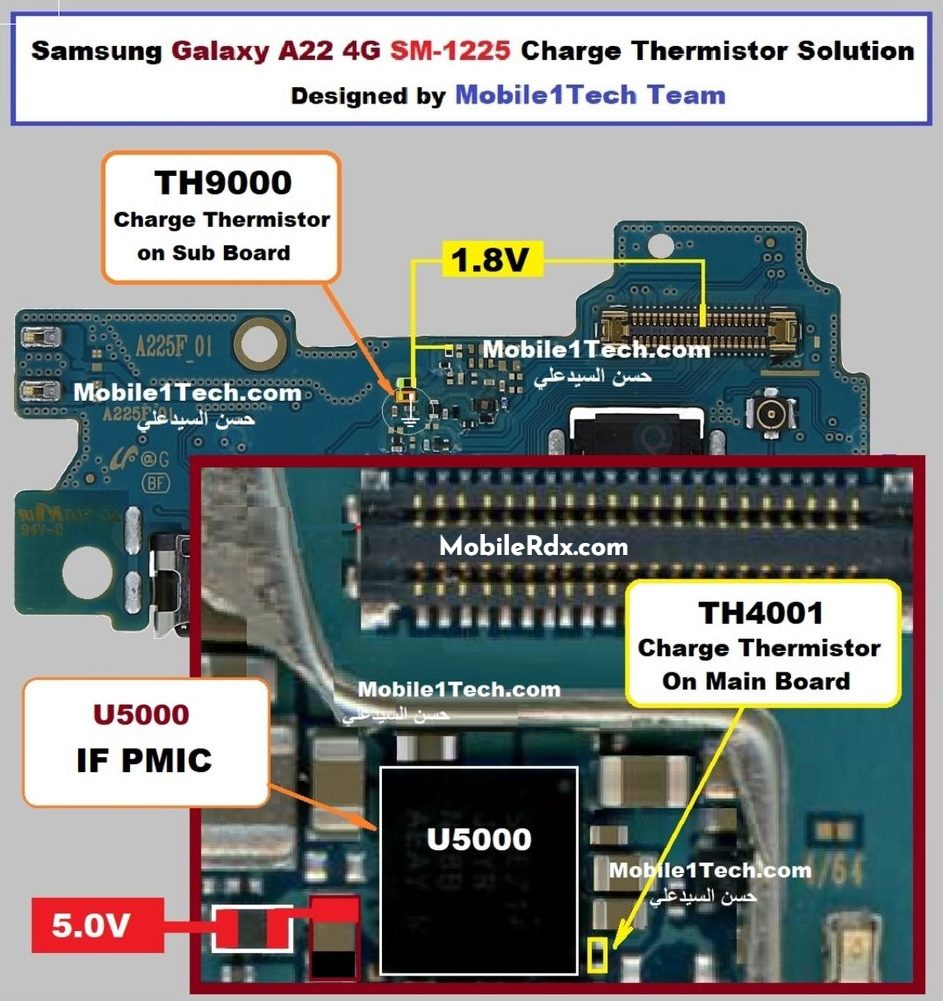

Just Follow the Picture Shown Below.

Repair  Samsung Galaxy A22 A225F Charging Paused Problem   Battery Temperature Error

In order to overcome the water damage problem, all you have to do is to:

Clean the charging dock strip and check.

If the problem persists or if the pins are damaged then you need to replace the entire charging dock strip.

Now check the voltage of the 1st pin (from right) of the charging connector with the help of a Multi-Meter, if there is a problem then re-solder the charging pin.

Read More:-  Samsung GT-S7390 Galaxy Trend Lite Power Button Ways Problem Jumper

Now check the voltage at the capacitor, if it is zero then check whether it is short or not if it then changes the capacitor. If not then:

Check the connection between the charging pin and the Capacitor, if the connection is broken re-solder it or place a jumper.

The charge is provided to the Samsung Galaxy A12 board via a Capacitor.

More information about this problem and solutions for new tips and tricks are going to this page, if there are new updates, there will be updates. Below are some related posts, you can read more about mobile phones.
