Vivo Y12 And Y15 Test Point | New Security | MTK Download Mode


Vivo Y12 And Y15 Test Point | New Security | MTK Download Mode

As a mobile technician, if you have a Vivo Y12 or Y15 smartphone that has been bricked by a customer, has a lost pattern lock, or is unable to verify the Google account after a hard reset, this guide will be useful in helping you bypass these issues quickly. The guide will provide instructions on how to remove MDM Lost Mode, including device lock, no download mode, and no recovery.

A test point, also known as a “download point” or “MTK test point,” is a specific set of points on a MediaTek (MTK) device’s circuit board that allows communication between the device and a computer. These points are typically used by technicians and engineers to troubleshoot and reprogram the device’s firmware, but they can also be used to bypass lock screens or to root the device. It is important to note that accessing test points can be dangerous and may void the device’s warranty. It is also important to have knowledge of what you are doing before attempting to access test points.

Each and every phone comes with different developer options like Recovery mode, Fastboot mode/bootloader mode, and EDL mode. All these modes use to perform different testing processes. Some of them only can be used for advanced android users or developers or mobile repairing and some of them can be used by normal users.

How To Remove Vivo Y12 And Y15 Pattern Lock and  FRP:

You can use EFT dongle, UMT dongle, octopus FRP tool, MRT key tool for remove FRP and pattern lock from Vivo Y22 or you can try other tools use the above test point to boot your phone in an emergency download mode remove Battery short test point to the ground and insert USB cable.

Read More:-  Vivo Y15s Test Point to Remove FRP, User Lock and Flashing

Vivo Y12 And Y15 Test Point – Boot Into Download Mode:

How To Find Vivo Y12 And Y15 Test Point.

  • Install “Vivo Y12 And Y15 MTK USB Drivers” on a windows pc.
  • Remove back panel of the device carefully. Make sure you are not going to damage any hardware component.
  • Now check the below screenshot and find the Vivo Y12 Test points.

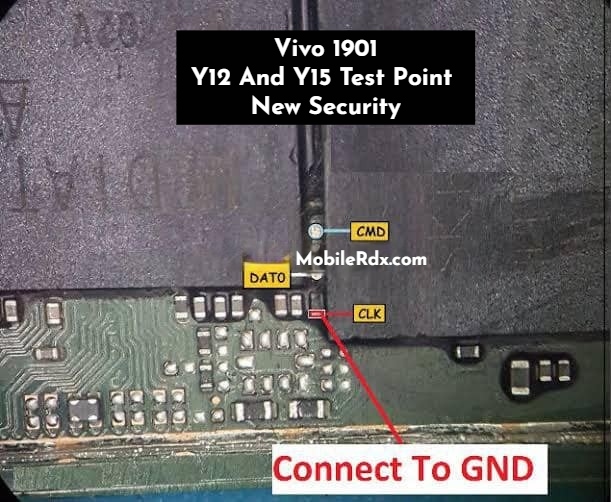

 Vivo Y12 And Y15 Test Point New Security MTK Download Mode

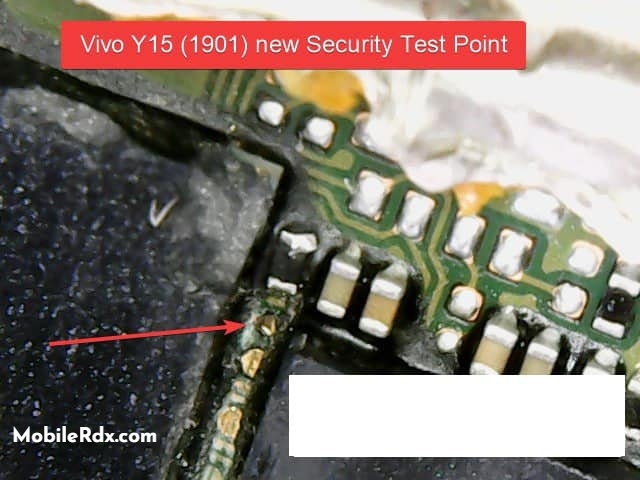

Vivo Y15 Test Point New Security MTK Download Mode

  • Remove the battery and Short bot points using any copper wire and attach a USB cable at the same time.
  • Now you are free to flash stock ROM on Vivo Y12 And Y15  mobile using any tool.

Uses of Vivo Y12 And Y15 Test Point

  • Installing stock ROM on Vivo Y12
  • Flashing Vivo Y12 without unlocking the bootloader (bootloader unlocking permission not required)
  • Recovering a dead Vivo Y12 And Y15 by flashing firmware
    Installing stock ROM easily if the device is not able to boot into fastboot mode or is stuck on the Vivo logo.

What is Screen Lock for Vivo Y12 And Y15:

Screen Lock is a privacy lock for android, many ways to enable screen locks on your device if screen lock enabled then the user need to enter the right password, Pattern, Pin lock to access devices again, screen lock means you can lock your device by pattern lock, password lock, pin lock, nowadays face locks and fingerprint lock also include in the screen locks menu,

Why do we need to Remove Screen Lock

If you forget the screen locks from your device and went to remove the pattern lock from your device then I am here to share with you the right method to Remove Pattern lock, Password lock, Pin locks. or If your device shows too many attempts to unlock pattern if you want to unlock then follow the below process very carefully.

Read More:-  Vivo Y22 Test Point [MTK Download Mode]
