Nokia 220 Full Charging Ways Repair Solution
Nokia 220 Charging Ways Problem Jumper Solution
Here’s the solution for Nokia 220 Not Charging problem , this simple solution provides the basic details on how to fix the problem. Just refer to the solution below and follow some steps procedures on how to troubleshoot the problem.
This solution may works on ‘charger no response indication’ when any working battery charger is plug-in to the DC jack.
View Larger Image ClickHere
After removing body of your Nokia 220, the very first thing that you need to do is to re-solder the charging connector and check.

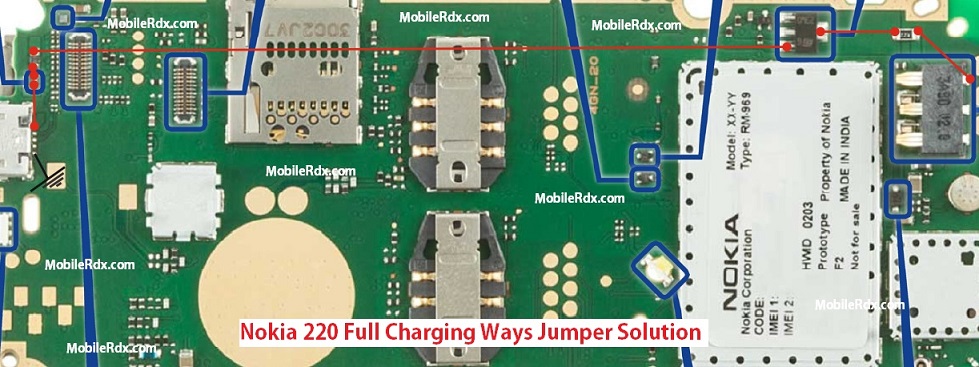

Now check all Track ways marked in below image.
The next thing that you need to do is to check connector of charging dock, clean the charging dock. If it is still faulty even after cleaning then change the entire charging dock.
Now check on-board connector, clean and re-solder it.
Now finally check Charging IC, gently heat it and check. If heating doesn’t do any good then replace Charging IC and check.
If you have further Questions please leave a comment.
Note: Please note that even though every solution posted on our website is tested by one or more members of our team before posting, but still we do not take any responsibility for any damage it may cause to your cell phones. Use these repairing solutions at your own risk. Thank You.
