iPhone 5c Speaker Not Working Problem Jumper Solution Ringer Ways

This solution below shows the connection line paths of the Apple iPhone 5c hands-free speaker for easy troubleshooting and repair. But to fix a speaker failure, you may first check the speaker using a multimeter to easily confirm if its still working or already damaged. If the speaker is okay, clean the speaker terminal contact pads and locate the components shown in the solution below, then do a check and replacement procedure.

If the speaker is working fine and the terminal contact pads seem okay but still there is no sounds output over it. You may then proceed to check certain components on the iPhone 5c PCB board that where the speaker is being connected.

Hardware Solution:

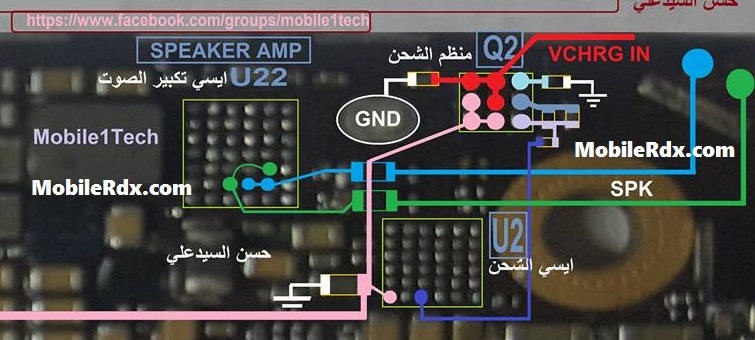

iPhone 5c Speaker Ways Ringer Not Working Problem - iPhone 5c Speaker Ways Ringer Not Working Problem

Hints to fix  iPhone 5c Speaker or Ringer Problem Repair Solution:
Check the speaker assembly for possible damaged and or misaligned. Use a multimeter to check it (How to use Multimeter), replace if already busted.
If the speaker is okay, check and clean the speaker terminal contact pads. Corrosion might weaken and loosen the connection.
Trace the speaker+ and speaker- connection to each certain components where it is being connected.
Check and replace the filter capacitor and resistor components.

Check and ensure first that speaker is working or already tried installing a replacement spare on.
If the speakers were okay, you may then proceed to check those components showed on the solution above.
There are filter coils connected on the circuit, you may first check this component
iPhone 5c Ringer Solution Jumper Problem Ways Ringer Not Working
