Samsung J510 Ear Speaker Ways Earpiece JUmper Solution Ear Speaker Problem Solution
Hers’ a solution for Samsung Galaxy J5 J510  if having an audio problem with earpiece or receiver speaker. This solution will make your troubleshooting easy and quick.

If the earpiece is not working or no sounds can be heard on it, you may first manually check the receiver speaker using a multimeter. If the speaker is damaged replace it. A poor, distorted or garbled sounds is also an indication of a bad speaker.
If the speaker is okay clean the speaker terminal contact pads, ensure that it has properly or good connection between the speaker’s terminal. Check the filter components, such coils, nd ESD diodes.

Samsung Galaxy J5 J510 Earpiece Solution

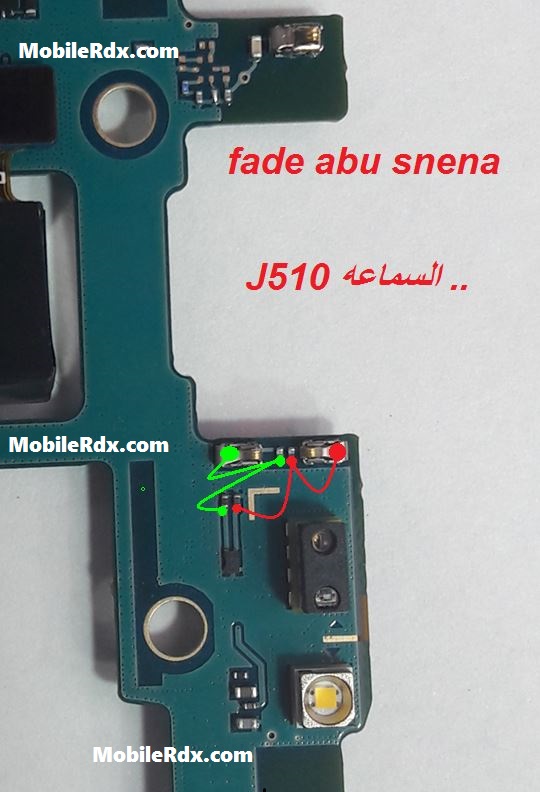

Samsung Galaxy J5 J510 Earpiece Ways Ear Speaker Jumpers
Samsung J510 Speaker Ways, No Sound On-Ear Speaker, Earpiece Ways Jumper.

The two terminals of the speaker from the connector are connected to the diode.

In order to troubleshoot, all you have to do is to follow the following steps:
Put jumper if it is faulty, as one of the reasons for this problem is that the phone heavily dropped or water damage.
Check the diode by using multi meter, if it is faulty then change it.

If you have further Questions please leave a comment.
Note: Please note that even though every solution posted on our website is tested by one or more members of our team before posting, but still we do not take any responsibility for any damage it may cause to your cell phones. Use these repairing solutions at your own risk. Thank You.
