    Lenovo Vibe C A2020a40 Charging Problem Solution USB Ways

    By Mobile RdxOctober 31, 2018

    Lenovo Vibe C A2020a40 Charging Problem Solution USB Ways
    Lenovo Vibe C A2020a40 Charging Solution Charging Ways Not Charging Problem USB Ways Fake Charging Problem Charging IC Solution

    Not charging or slow charging is a very common issue of most of the android devices, and it’s true for Lenovo Vibe C A2020a40 as well. A lot of users are facing this Lenovo Vibe C Not Charging issue. If you are one of those users, here are some fixes that can be followed in order to fix the issue.

    Here is the solution for Lenovo Vibe C A2020a40 Not Charging problem like there is No Charging indication shows on the display when the battery charger is being a plug-in.
    This problem is may cause by faulty components Lenovo Vibe C A2020a40 PCB board. This problem may sometimes happen if the device suffered wet or water damaged or just exist

    For those that own a Lenovo Vibe C A2020a40, you may be having a problem that the Lenovo Vibe C A2020a40 not charging correctly. Lenovo Vibe C A2020a40 owners thought that the USB cable was an issue for the Lenovo Vibe C not charging. So they went out and purchased a new charger, instead, some quick methods that we’re about to suggest can generally fix the problem when the Lenovo Vibe C not charging when plugged in.

    Below are the most common causes of why you Lenovo Vibe C A2020a40 have trouble charging, and other problems concerning the battery like the grey battery issue:

    • Sunken sockets on the device, or bent/ broken connector
    • Factory-defective phone
    • Defective battery
    • Damaged charging unit or cable
    • Defective phone
    • Temporary battery issue
    Read More:-  Lenovo A5000 Speaker Not Working Problem Repair Solution

    Hardware Solution:

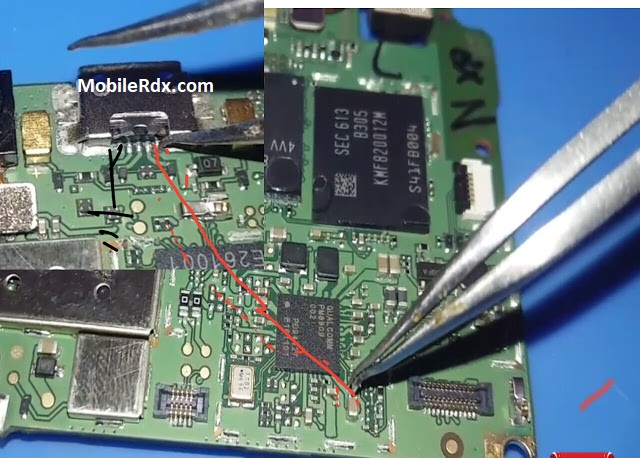

    Lenovo Vibe C A2020a40 Charging Ways

    Or

    Lenovo Vibe C A2020a40 Charging Problem Solution USB Ways

    Check Charging connector for any kind of water damage, if it is then clean it and check.

    Now re-solder charging connector pins and check.
    Check charging voltage with the help of a multimeter. Place Negative terminal of the multimeter on ground and Positive on a charging pin (1st pin from your left-hand side).
    Make sure that the voltage is between 5V to 5.5V, if it is not then replaced charging connector. (Charging Connector can be replaced by heating it from the opposite side of the board, while heating it, pull charging connector with the help of Tweezers).
    Now remove metal sheet covering the charging section (It contains Charging IC and Components).
    Check continuity between Fuse and Charging Pin (1st from your left-hand side). If there is no continuity, place jumper.
    Also, check the following, and replace them if damaged:
    Fuse
    Capacitor
    Coil
    Heat charging IC, if it is faulty then replace it.
    Now check charge at the battery terminals, if it is not standard voltage then re-solder or replace battery terminals.

    Lenovo Vibe C A2020a40 Charging Jumper.USB Ways, Not Charging Problem, Samsung  A520F Charging Solution, Samsung SM-B313E Charging Ways
