    Huawei Y7 (2019) Charging Problem Solution – USB Ways

    By Mobile RdxFebruary 4, 2020

    Here are the Huawei Y7 (2019) Charging Problem Solution, charging ways, charging jumper slow charging problem solution In this post, we will guide you on how to repair Huawei Y7 (2019) smartphone that’s not charging or won’t respond when connected to a charger. So, if you are currently having this problem, continue reading to learn the steps to rule out possibilities to discover what the problem with your phone really is.

    Not charging or slow charging is a very common issue of most of the android devices, and it’s true for Huawei Y7 (2019) as well. A lot of users are facing this Huawei Y7 (2019) Not Charging issue. If you are one of those users, here are some fixes that can be followed in order to fix the issue.

    So if you are experiencing any charging problem or problem connecting your Huawei Y7 (2019) to your computer via USB cable then it is possible that your Huawei Y7 (2019) charging connector is faulty. Replacing it with a new one is the only solution here. But if by any chance the USB connector prints are broken then you have to make the jumpers as shown in the diagram below.

    Huawei Y7 (2019) Charging Problem Ways Solution:

    Here is Huawei Y7 (2019) Charging Problem Ways Not Charging problem solutions. Please study these diagrams very carefully before you start repairing them.

    Read More:-  Huawei P20 Lite Mic Ways Solution Mic Problem Jumper

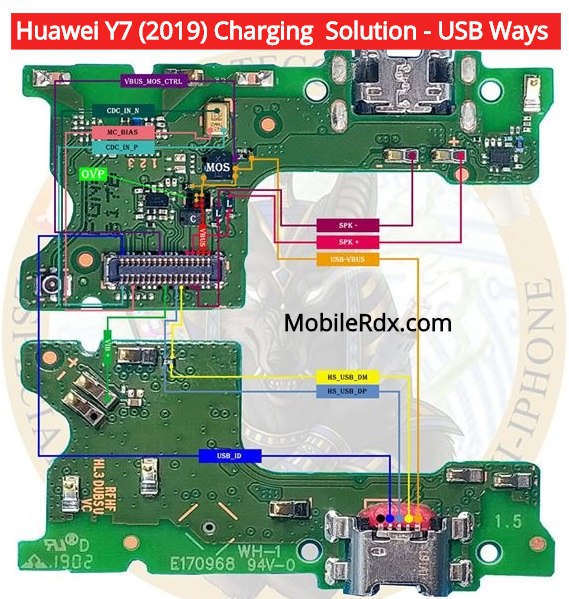

    Huawei Y7 (2019) Charging Ways USB Jumper

    Check Charging connector for any kind of water damage, if it is then clean it and check.

    Now re-solder charging connector pins and check.

    Check to charge voltage with the help of a multimeter. Place the Negative terminal of the multimeter on the ground and Positive on a charging pin (1st pin from your left-hand side).

    Make sure that the voltage is between 5V to 5.5V, if it is not then replaced charging connector. (Charging Connector can be replaced by heating it from the opposite side of the board, while heating it, pull charging connector with the help of Tweezers).

    Now remove metal sheet covering the charging section (It contains Charging IC and Components).

    Check continuity between Fuse and Charging Pin (1st from your left-hand side). If there is no continuity, place jumper.

    Also, check the following, and replace them if damaged:
    Fuse
    Capacitor
    Coil

    Heat charging IC, if it is faulty then replace it.

    Now check charge at the battery terminals, if it is not standard voltage then re-solder or replace battery terminals.

    Potential Fixes For Huawei Y7 (2019) Charging Problem Issue

    There could be several reasons for Huawei Y7 (2019) Charging Problem issue, and the solutions are listed below: You can also read battery saving tips for android devices to extend the battery life of your device.

    Step 1: Use the correct charger

    Step 2: Let the device charge for a while before using it

    Read More:-  Honor 9X Backlight Ways | LCD Display Light Problem Solution

    Step 3: Fix USB port

    Step 4: Change the cable

    Step 5: Clean the port

    Step 6: Check battery
