Samsung Galaxy M32 M326B ISP PinOUT | Test Point Image


Here you will get the direct connection of Samsung Galaxy M32 M326B ISP Pinout and its Ways, by using this pinout you can do UFS chip Programming Flashing remove Samsung Galaxy M32 user lock FRP reset, write UFS dump.

You can easily get the UFS ISP Pinout connection of the Samsung Galaxy M21 by following the full guide below along with images. By using the ISP Pinout, you can easily bypass FRP lock or reset user data on your device via EasyJTAG Plus Box, or any other tool. Check out the below guide.

Samsung Galaxy M32 Specification:

The device features a 6.5 inches LCD display that has a 720 x 1600 pixels resolution. The device comes in Slate Black and Sky Blue colors. The smartphone is integrated with a Dual SIM (Nano-SIM, dual stand-by).

Samsung Galaxy M32 5G is pack with 6 GB and 8 GB RAM with 128 GB internal storage. The memory can be increased with the help of microSDXC (dedicated slot). It is fueled with a non-removable Li-Po 5000 mAh battery + Fast charging 15W.

The rear camera of the smartphone consists of a quad-camera, which consists of 48 MP (wide) + 8 MP (ultrawide) + 2 MP (macro) + 2 MP (depth) while on the front there is a 13 MP (wide) camera. The device runs on the Android 11 + One UI 3.1 operating system.

What is Samsung Galaxy M32 M326B ISP Pinout?

Samsung Galaxy M31 ISP means “In-System Programming”.In-System Programming (ISP) allows communication to take place with a target chip without the need to remove it. The main advantage of this method is the possibility to communicate with a target chip UFS bypassing the CPU. It brings higher speed for data extraction compared with JTAG but it requires great soldering skills. ISP applied to forensics, is the practice of connecting to a UFS or eMCP flash memory chip for the purpose of downloading a device’s complete memory contents.

Read More:-  Samsung Galaxy A20e ISP EMMC PinOUT to ByPass FRP and Pattern Lock

Samsung Galaxy M32 M326B Repair Dead boot, Flashing, remove FRP lock or any brand phone you need EasyJTAG Plus it is the only one box in the market which supports the UFS chip. those boxes help some phone after flashing wrong firmware not show booting on-screen.this you need those boxes for boot repair. some brands, not possible lock remove like a pin, pattern, password, FRP, and MDM lock this really supports for remove locks.

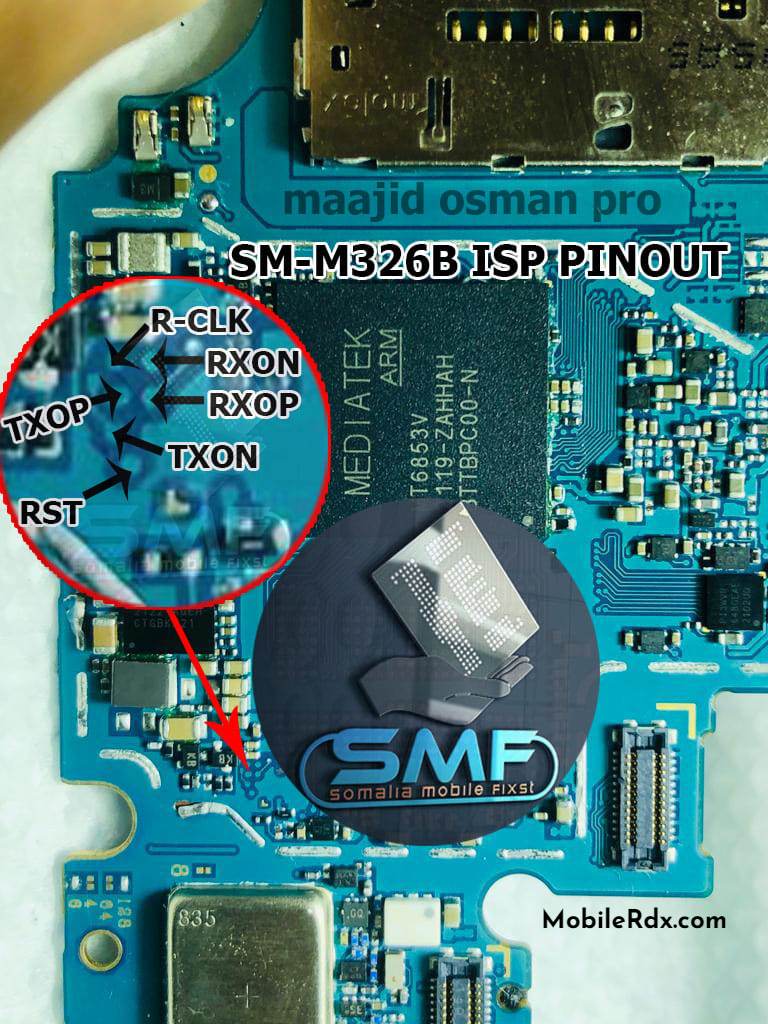

 Samsung Galaxy M32 M326B ISP Pinout Image

Samsung Galaxy M32 M326B ISP PinOUT   Test Point Image


  • Samsung Galaxy M32 with Good Charge Battery
  • Easy Jtag box with adapter
  • Micro USB Cable
  • Computer or Laptop

 Samsung Galaxy M32 FRP Lock Using EasyJTAG Plus:

  • Remove the back panel of the device and connect the wire to the UFS ISP Pinout.
  • Next, connect the correct UFS ISP Pinout to the EasyJTAG Plus box
  • Check the “UFS” tab
  • Then Click on “Identify UFS Chip.
  • Connect your Samsung Galaxy M32 to the PC via a USB cable.
  • Go to Preset Select Persistent
  • Now Click on Erase LUN0 Data
  • Done.

Video Guide:

What Is Samsung Galaxy M32 M326B UFS Chip?

Samsung Galaxy M21 Universal Flash Storage (UFS) is an advanced, high performance interface designed for computing and mobile systems such as smartphones and tablets where power consumption needs to be minimal.

The major differences between eUFS/UFS Card over the older signaling architecture-based eMMC/SD cards are its high speeds and low power serial interface with high reliability.

In light of the UFS’s high performance and reliability, Samsung has seen adoption in the mobile market. Samsung will continue to satisfy the growing storage needs of the industry by offering a variety of advanced UFS lineups, while more thoroughly addressing the ever-increasing demand for leading-edge memory solutions in other market segments, too.

Read More:-  Samsung Galaxy A71 UFS ISP PinOUT | Test Point | EDL Mode 9008
