Oppo F15 Backlight Ways, Repair Display Light Problem


In this article, we will offer solutions to fix the Oppo F15 Backlight and LCD Display Light issues. If your phone’s display is damaged or the light on the screen is not working properly, it’s likely due to a damaged LCD display. To resolve this, you can try replacing it with a working LCD display. However, if the Redmi Note 10 screen is flashing, has low light or no backlight, there may be additional repairs needed.

The Oppo F15 backlight issue often manifests as a lack of display on the LCD screen, causing it to appear white. In general, the LCD screen doesn’t emit any light even though the ringing and notification sounds can still be heard.

Oppo F15 Device Overview

The OPPO F15 is a mid-range smartphone released in January 2020. It features a 6.4-inch AMOLED display with a resolution of 2400 x 1080 pixels and an aspect ratio of 20:9. It is powered by a Mediatek Helio P70 octa-core processor, with 8GB of RAM and 128GB of internal storage.

The device runs on ColorOS 7 based on Android 10. The F15 is equipped with a quad-camera setup on the back that includes a 48-megapixel main camera, an 8-megapixel ultra-wide camera, and two 2-megapixel cameras. On the front, it has a 16-megapixel selfie camera.

The device also features a large 4015mAh battery with 30W fast charging support. Overall, the OPPO F15 is a well-rounded smartphone that offers a good balance of features and performance at an affordable price point.

What Is An Oppo F15 Backlight Or LCD?

The Oppo F15 Backlight and LCD are crucial components of the phone’s display. The LCD (liquid crystal display) is the part of the phone where you see all the action when you use it – from tapping icons, watching videos, playing games, etc. If the LCD is faulty or damaged, it can affect the usability of the phone. The backlight, on the other hand, is a series of LED lights arranged in the screen layers that provide illumination to the LCD screen.

Read More:-  Samsung Galaxy Note N7000 Usb Charging Ways Solution

Oppo F15 Backlight Ways Display Light Problem Solution

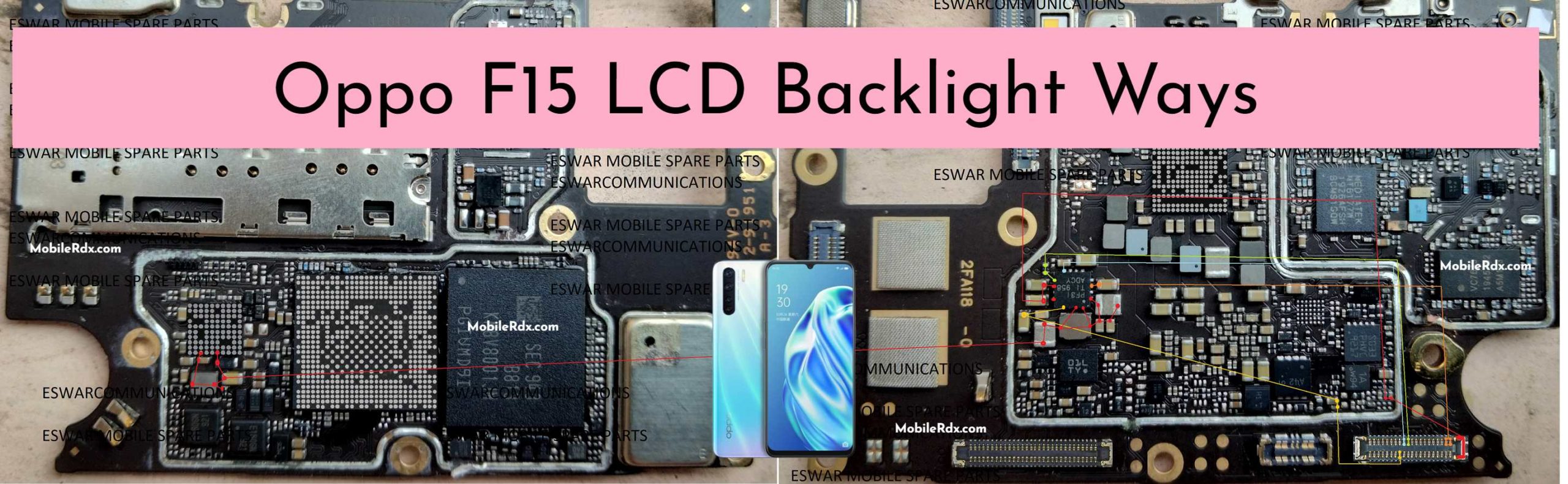

Oppo F15 Backlight Ways Repair Display Light Problem scaled

To repair the Oppo F15 dark screen backlight issue, the first step is to replace the display screen module. This will help determine if the backlight LED’s on the LCD are still functional or have been damaged.

To further diagnose the issue, you can use a multimeter to check the LED’s, taking care not to damage the LCD flex connector. If the newly installed LCD still displays the same problem and the LED light doesn’t come on, you should refer to the solutions listed and locate the relevant components on the PCB board.

Possible Oppo F15 Backlight Issues:

  • White Screen
  • No Display
  • Display with Lines
  • Dim Screen
  • No Backlight.

These are some of the common backlight problems that you might encounter with your Oppo F15 device. Each of these issues can have different causes and may require different solutions. In order to properly diagnose and fix a backlight problem, it is important to understand the specific symptoms and potential causes of the issue.

Here are some useful steps that are required for the faulted LCD light mobile repair. You need to follow these steps for the perfect mobile repair. All steps are used as general mobile repairing.

  • Try to test the current on the display Lights pins. If the display links are broken or missing.
  • You can make a direct jumper by the image diagram above.
  • For the display connector repair. You need to start first from the motherboard connector then display the panel strip connector and last LED connector at the backside of the panel.
  • The jumper and LED lights are working fine but the LED current is missing. In this case, You need to fix this issue from the Lights controller section.
  • There could be a separate section or build-on power chip. In a separate section of the LED lights controller. There could be light current filter chip or transistor for auto-switching.
  • The auto switch may help to refuse battery life. The display lights are the major things that can drain the battery fast. To learn more about the display lights’ auto-switching. Anyway, let us go to the point of mobile repairing by steps.
Read More:-  Samsung GT-I8200Q No Sim Card Ways Problem Repair
To troubleshoot and repair the backlight problem on your Oppo F15, it’s important to check each component for defects. If you identify any faulty components, replace them with identical components of the same value. You should also check the diode and coil components, as these are often the cause of backlight issues. By identifying and replacing any damaged components, you may be able to resolve the problem with the backlight display.
