    Honor X7a ISP EMMC PinOUT | Test Point

    By Mobile RdxNovember 2, 2023

    Honor X7a ISP EMMC PinOUT | Test Point | MTK Download Mode

    Using this guide, you can get access to the Honor X7a ISP Pinout. By using the ISP Pinout and a tool like the EasyJTAG Plus Box, you can bypass the FRP lock and reset your user data. The guide below provides more details.

    The Honor X7a was released recently with mid-range hardware specifications, including a Mediatek MT6765H Helio G37  chipset, 6GB of RAM, 128GB of internal storage, and 50MP rear cameras. This guide shows the tested pinout for the Honor X7a EMMC ISP and test point.

    Z3x Samsung Tool, Easy JTag, and UFI Box can bypass Honor X7a Fingerprint, pattern, and screen locks. It doesn’t matter how much knowledge you have of Android software; this method will make the problem disappear quickly. If you see the message “USB not recognized,” your USB doesn’t work. You can only use this method if your battery is fully charged and your USB port works properly. Remember to leave your questions in the comments; I will do my best to answer them.

    What is Honor X7a ISP Pinout?

    ISP Pinout refers to the layout and function of the pins on a device that is used to program or reprogram the eMMC (embedded Multimedia Card) storage. In many electronic devices, including smartphones and tablets, eMMC storage is used to store data. Using the eMMC ISP Pinout, a programmer or a device service technician can access the eMMC storage and perform tasks such as reading, writing, and erasing data.

    The eMMC ISP Pinout typically consists of pins used for power, ground, data transfer, and control signals. The specific number and function of the pins can vary depending on the device and the programmer being used. Some standard pins found on an eMMC ISP Pinout include VCC (power), GND (ground), CLK (clock), CMD (command), and DAT (data).

    Read More:-  Samsung Galaxy A14 (A145M) EMMC ISP Pinout | Test Point Image

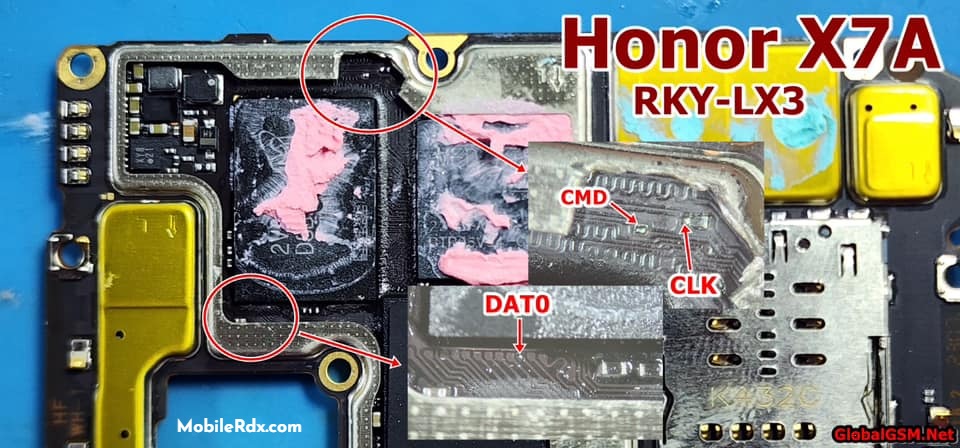

    Honor X7a ISP EMMC Pinout Image:

    Hardware Process:

    • Open the back cover of your phone. Next, disconnect the motherboard from the camera, fingerprint reader, and battery that are already there.
    • Remove the motherboard’s screws, take it out, and store it somewhere safe.
    • Find the six eMMC pins on your device. These are the pins: VCC, GND, Dat 0, CLK, and VCCQ. To get to them, you will have to cut through a steel cover.
    • Get the adapter out of the UFI box. In the connector I talked about in the last step, you will see the same pins.
    • There are four jumpers between the base and the adapter. You need to solder Dat0, CLK, CMD, and GND. I left the VCC and VCCQ on the USB so it could turn them off.

    Honor X7a ISP EMMC PinOUT MTK Test Point

    Two of the greatest dongles on the market, the easy jtag plus and the ufi box, are required to fix a dead boot on a Honor X7a, or any other brand of phone. When phones flash the wrong firmware, those boxes help them not show starting on the screen. For boot repair, you need those boxes. Some brands don’t let you remove locks like PIN, pattern,

    How to Use UFS Pinout using Easy JTag

    • Download the Latest Easy Jtag Setup From here
    • Locate the PinOUT/Test Point on your device by looking at the image above.
    • Make sure you follow the software guidelines. Alternatively, you can use the Z3X Samsung Tool Pro

    Thank you for reading this guide on finding Honor X7a.
