Samsung Galaxy S5 Mini SM-G800F Volume Key Ways Problem Jumper
Samsung G800F Volume Keys Up down Problem Solution with Jumpers

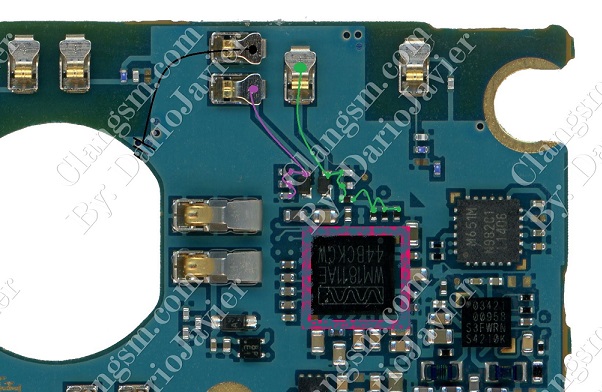

Here’s the connection line paths for Samsung Galaxy S5 Mini G800F that may useful in troubleshooting a not working Volume control both UP (+) and DOWN (-) button switches. This shows the connection line paths (jumper ways) specially when trying to fix the button switch if severely damaged or the PCB solder pads has been already lifted. You may use a multimeter to trace each of the volume button keys terminals connection across to a components where it is being connected. This solution may also work with Samsung SM-G800F phones.
To fix this problem you may first visually check the button switch assembly for possible damaged. Just replace it, and carefully re-solder it without lifting the PCB board terminal solder pads.
If the said switches assembly seems okay but it still it does not respond or work. Refer to the solution above and locate the highlighted component on the PCB board.
Samsung Galaxy S5 Mini SM-G800F Volume Up Down Button Solution
Samsung G800F Volume Key Ways,Jumper, problem, Solution, Volume Up-Down Button Ways
If you have any further Questions please leave a message.
Keep in mind:- The every solutions posted on Our website is well tested before by our specialist team, But still we do not take any responsibility for any damage it may cause to your cell phone. Use these repairing solutions at your own Risk, Thank you.
