Huawei Y6p ISP Pinout EMMC Ways to ByPass FRP and Pattern Lock

0

Here we will show you Huawei Y6p ISP Pinout or Realme C11 RMX2185 EMMC Ways for ufi box easy jtag , by using this pinout you can remove the Huawei Y6p user lock FRP reset. You can easily get the ISP Pinout EMMC connection of the Huawei Y6p by following the full guide below along with images. By using the ISP Pinout, you can easily bypass FRP lock or reset user data on your device via UFi Box, AE-tool, or any other tool. Check out the below guide.

Remove Pattern Lock, Screen Lock, Finger Lock in Huawei Y6p with UFI Box you can easily solve with this method if you are a fresher technician or experienced technician in android software related if the error occurs of USB not recognized then your USB is not working. if a battery is not charged, your USB socket will not properly work and you will fail in this method. if any issues please write your questions in the comment box I will try my best to help you.

Huawei Y6p Overview

Huawei Y6p is released in May 2020 and it comes in a dimension of 159.1 x 74.1 x 9 mm and weighs 185 grams.  The smartphone comes with a triple-camera on the rear side that consists of 13 MP (wide) + 5 MP (ultrawide) + 2 MP (depth). On the front, there is a single 8 MP (wide).

The smartphone is fueled by a Non-removable Li-Po 5000 mAh battery. The smartphone is powered by Mediatek MT6762R Helio P22 octa-core and GPU is PowerVR GE8320.

What is Huawei Y6p ISP Pinout?

Huawei Y6p ISP means “In-System Programming”.In-System Programming (ISP) allows communication to take place with a target chip without the need to remove it. The main advantage of this method is the possibility to communicate with a target chip eMMC or eMCP bypassing the CPU. It brings higher speed for data extraction compared with JTAG but it requires great soldering skills. ISP applied to forensics, is the practice of connecting to an eMMC or eMCP flash memory chip for the purpose of downloading a device’s complete memory contents.

Read More:-  Oppo A31 ISP Pinout For Remove Userlock And Bypass FRP

eMMC and eMCP memory are the standard in today’s smartphones, and the ISP practice enables examiners to directly recover the complete data without removing the chip and destroying the device.ISP benefits the examiner who faces the challenges of tightening budgets, yet wants to expand their expertise in retrieving evidence from locked smartphones. A cost-effective technique, ISP provides examiners with the same results of a chip-off at a lower price-point.

Why do we need Realme C11 ISP Pinout?

Just Like “Joint Test Action Group (JTAG)” there are specific contacts that will be of interest to the examiner. But unlike JTAG, the contacts are directly off the chip BGAs and do not go through the processor. Acquires data much faster than JTAG, enabling examiners to process more phones faster.

CMD
CLK
DATA0
GND
VCC – Voltage Supply for Core (3,3V)
VCCQ – Voltage Supply for I/O (1,8 – 3,3V)

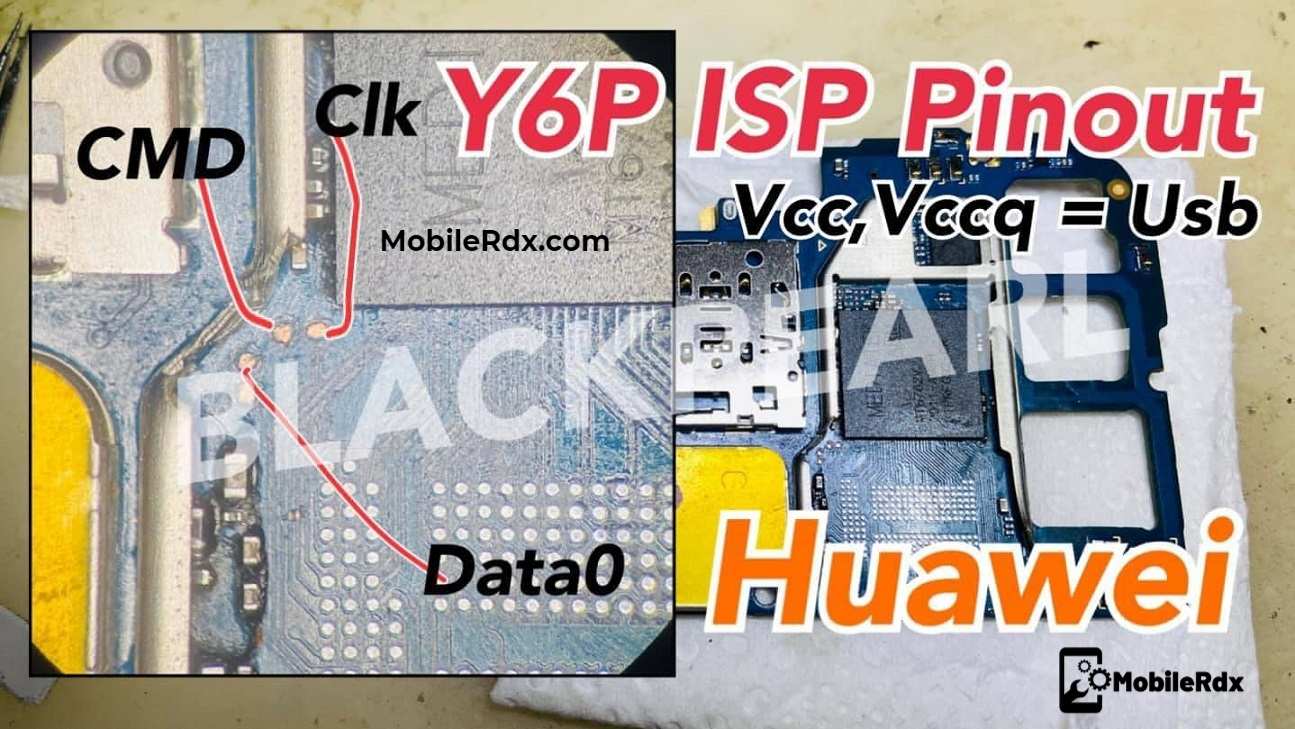

Huawei Y6p ISP Pinout Image:

Huawei Y6p ISP Pinout EMMC Ways to ByPass FRP and Pattern Lock

Huawei Y6p repair dead boot or any brand phone you need two dongles best in the market one is easy jtag plus and another is ufi box both are best in the market. those boxes help some phone after flashing the wrong firmware not show booting on-screen.this you need those boxes for boot repair. some brands, not possible lock remove like a pin, pattern, password, FRP, and MDM lock this really supports for remove locks.

Requirement Tools

Microscope
Miro Solder
Solder Paste
0.1mm Copper Wire
eMMc Flash Box (Easy JTAG Plus, Ufi Box, Medusa Pro, Etc)

How To Remove Huawei Y6p User Lock FRP Using UFI Dongle:

  • Remove the back panel of the device and connect the wire to the ISP Pinout.
  • Next, connect the correct ISP Pinout to the UFi Box
  • Check “Direct eMMC (ISP)”
  • Then Click on “Identify eMMc.
  • Connect your Huawei Y6p to the PC via a USB cable.
  • Head over to the PC and open Device Manager.
  • If your device is located there, run the UFi Box.
Read More:-  Vivo Y17 EMMC Pinout For Remove User Lock And FRP

UFI EMMC User Partition

  • Go to USERAREAPART
  • Now Click on Special Task ► [Huawei] MasterClear ► Wipe Data Only
  • Now Click on Special Task ► Clear FRP Lock
  • Done.
