Xiaomi Mi 10 Test Point | Reboot to EDL Mode 9008
Hello Mobile Technicians In this tutorial we will show you Xiaomi Mi 10 Test Point and how to boot into EDL mode 9008 using test points? Emergency downloading mode or 9008 mode is very important to unbrick Qualcomm Xiaomi Mi 10 mobile.
You can easily get Test Point connection of the Xiaomi Mi 10 by following the full guide below along with images. By using the Test Point, you can easily restore the stock ROM, bypass FRP lock, or reset user data on your device via UMT Dongle , MRT Key,UFi Box. In this guide, we will also guide on how to reboot into 9008 EDL Mode. Emergency downloading mode or 9008 mode is very important to unbrick Qualcomm Xiaomi Mi 10 mobile.
There may be a condition when your Android device was in boot loop condition or bricked, but the bootloader has not been still unlocked. This condition will force you to use the Test Point process. It would be not possible to unlock the bootloader because the device is boot looped or bricked.
What Is Xiaomi Mi 10 Test Point Or EDL Mode?
If you are a newbie user then probably EDL mode may be new word for you. But if you are involved in rooting and flashing firmware then absolutely not.
In short, EDL mode is also known as an emergency mode for mobile. Technically all the Xiaomi Redmi devices come with the EDL mode option. If you want to install or update your own Xiaomi Mi 10 phone then you have many options to flash new stock ROM on the device using Recovery Mode or using fastboot mode. Both methods have some limitations like Recovery ROM can be used only to update higher version and you can’t downgrade Xiaomi version.

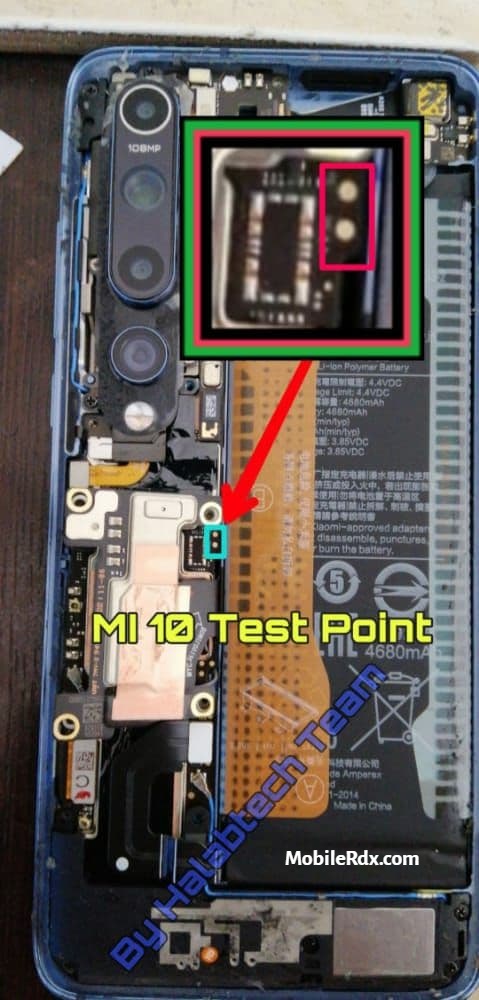

Xiaomi Mi 10 Test Post EDL 9008 Mode:
Find EDL MODE FOR Xiaomi Mi 10
Uses Of Xiaomi Mi 10 Test Point
- Install stock ROM on Xiaomi Mi 10.
- Flash Xiaomi Mi 10 without unlocking the bootloader. Bootloader unlocking permission not required.
- Recovery dead Xiaomi Mi 10 by flashing firmware.
- Install stock ROM easily, if the device is not able to boot into fastboot mode or device stuck on Vivo Logo.
Other Ways to Enter EDL Mode on Xiaomi Mi 10
Follow the instruction below carefully to boot your device into EDL Mode (aka Emergency Download Mode)
Using Adb Mode
- First, install ADB & Fastboot driver on PC and then turn on USB debugging on your phone.
- Now connect your device with PC using USB Driver.
- Then open a command window in PC and paste following commands and hit enter.
adb reboot edl
- If any pop-up appears on the phone screen then allow the ADB access.
- Download ADB and Fastboot Tool and extract it in your PC (C:/ Drive)
- Boot your device into the bootloader
- Open the command window on your PC on the same folder extracted (ADB and Fastboot Tool)
- now enter the command
.\fastboot oem edl
Note: It’s just to understand that EDL mode flashing is a universal method for all Huawei devices. But EDL booting process may be different for different devices. For some devices, you can use the EDL boot command but problem is that nowadays edl command doesn’t work for all the latest Huawei smartphones. So the test point is the easiest and perfect method to boot any Nokia phone into edl mode using test terminals.
