If you are a mobile technician and dealing with a Motorola Moto E14 that is dead, bricked, or FRP-locked, you might need to boot the device into its specific download or boot mode to flash the firmware or remove the Google account lock. Since physical volume buttons don’t always work to force the device into the correct state, using the motherboard hardware test point is the most reliable method.
In this guide, we will show you the exact location of the Moto E14 test point so you can successfully connect your device to your PC and use your preferred software repair tools, such as UnlockTool, UMT, or others.
What is the Test Point?
The test point is a copper pad on your motherboard (PCB) that allows you to force the Unisoc processor on your phone into SPD Flash Mode to reprogram/reset FRP, flash, unlock, or repair your device.
Using the test point, you can force the device into spd download mode and repair it with tools such as Unlock, Hydra Tool, CMMTK2, or UMT. Without using the test point, these devices cannot detect the device when it is completely dead.
- Data recovery operation
- Dead boot issues fixing
- Bypassing FRP lock
- Firmware flashing
- IMEI and security partitions

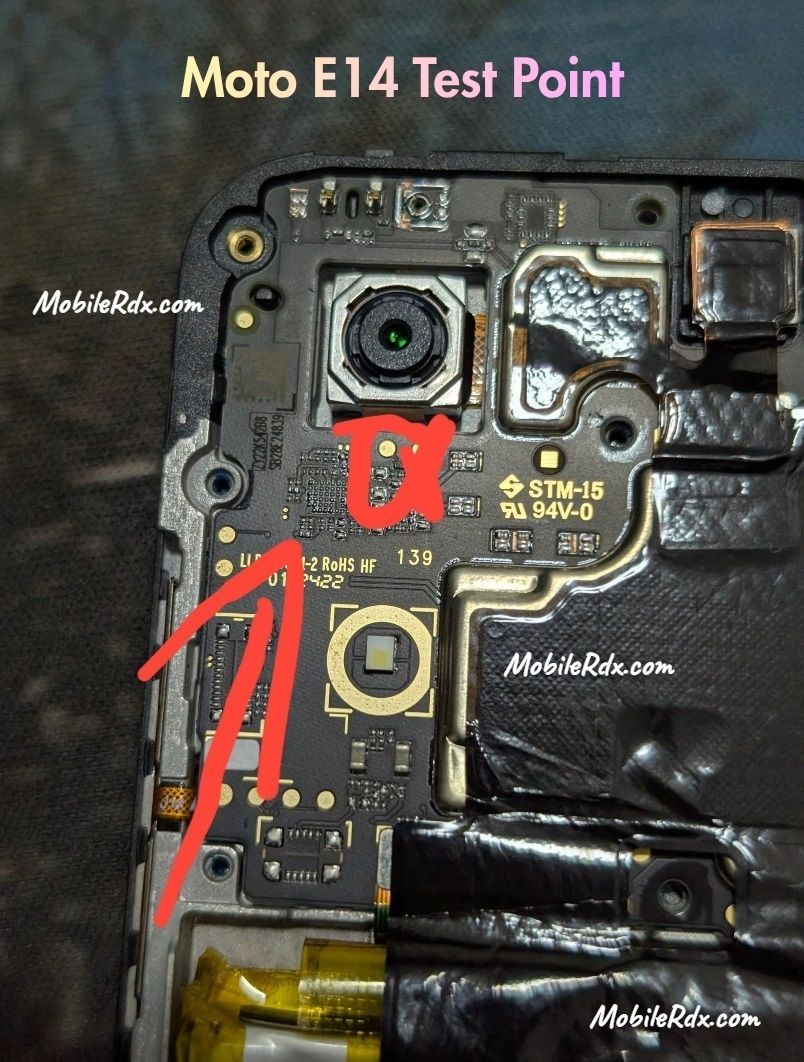

Motorola Moto E14 Test Point Image:
The following image will guide you through shorting the pinout and successfully rebooting your Moto E14 to SPD download mode.
Required Tools for Repair
When the device is successfully put into SPD U2S Diag mode via the test point, you will need a professional service software tool to perform the repair. Commonly used tools include:
- Unlock Tool
- UMT (Ultimate Multi-Tool)
- CM2 (MTK2)
Guide to Use Moto E14 Test Point
- First, switch off the Moto E14 completely and remove the back cover.
- Disconnect the battery connector for safety.
- Find the Motorola Moto E14 test point on the motherboard (see the diagram above).
- Use a tweezer or a jumper wire to shorten the test point to ground.
- Connect the device to your PC using a USB cable.
- Open your mobile repair tool. and use the function you want.
- This process is not easy, so it is recommended that only experienced technicians attempt it. Running the test point incorrectly can cause permanent damage to the phone.
Frequently Asked Questions
The test point is a small spot on the phone’s motherboard. You connect it to the ground (metal shield) to put the phone into SPD boot mode. This helps you fix software and lock problems.
The test point is a small spot on the phone’s motherboard. You connect it to the ground (metal shield) to put the phone into SPD boot mode. This helps you fix software and lock problems.
Yes. You must carefully remove the back cover and the internal screws to reach the motherboard, where the test point is located.
It is safe if you are careful. However, opening your phone voids the warranty. Be very gentle so you don’t damage the small parts on the board.
If done correctly, your computer will show “SPD U2S Diag” under Ports (COM & LPT).
