Samsung Galaxy A04e A042F Test Point to Remove Pattern, FRP And Flashing


This guide provides you with the actual image of the Isp pinout and test point for the Samsung Galaxy A04e A042F. With the Testpoint, you can effortlessly revert to the stock ROM, bypass the FRP lock, eliminate MDM Lost Mode (Device Lock, No Downloads Mode, No Recovery), and remove FRP Direct by UFS. Download mode is a unique mode available on MediaTek (MTK) devices that enables the device to connect to a computer and receive firmware or other software updates. To activate download mode on an MTK device, one usually needs to use a combination of hardware buttons on the device or establish a connection with the device’s internal components through test points. To enter download mode on an MTK device using test points, you will need a specialized tool such as a JTAG debugger or a USB-to-serial adapter, as well as knowledge of the device’s circuit board and test point locations. Once you have these tools and knowledge, you can use the test points to establish a connection with the device’s internal components and then use specialized software on your computer to apply firmware or other updates to the device. It is important to note that attempting to use test points or enter download mode on an MTK device without proper knowledge or equipment can cause damage to the device. If you are not a trained technician or engineer, it is recommended that you seek the assistance of a professional to perform any firmware updates or other tasks that require access to the device’s test points.

How To Remove Samsung Galaxy A04e A042F Pattern Lock and  FRP:

You can use the EFT dongle, UMT dongle, octopus FRP tool, or MRT key tool to remove FRP and pattern lock from Samsung Galaxy F42 or you can try other tools use the above test point to boot your phone in an emergency download mode remove Battery short test point to the ground and insert USB cable.
Read More:-  Vivo V17 Pro PD1931F EDL Test Point – Boot Into EDL 9008 Mode

Samsung Galaxy A04e A042F Test Point – Boot Into Download Mode:

How To Find Samsung Galaxy A04e A042F Test Point.
  • Install “Samsung Galaxy A04e MTK USB Drivers” on windows pc.
  • Remove back panel of the device carefully. Make sure you are not going to damage any hardware component.
  • Now check the below screenshot and find the Samsung Galaxy A04e Test points.

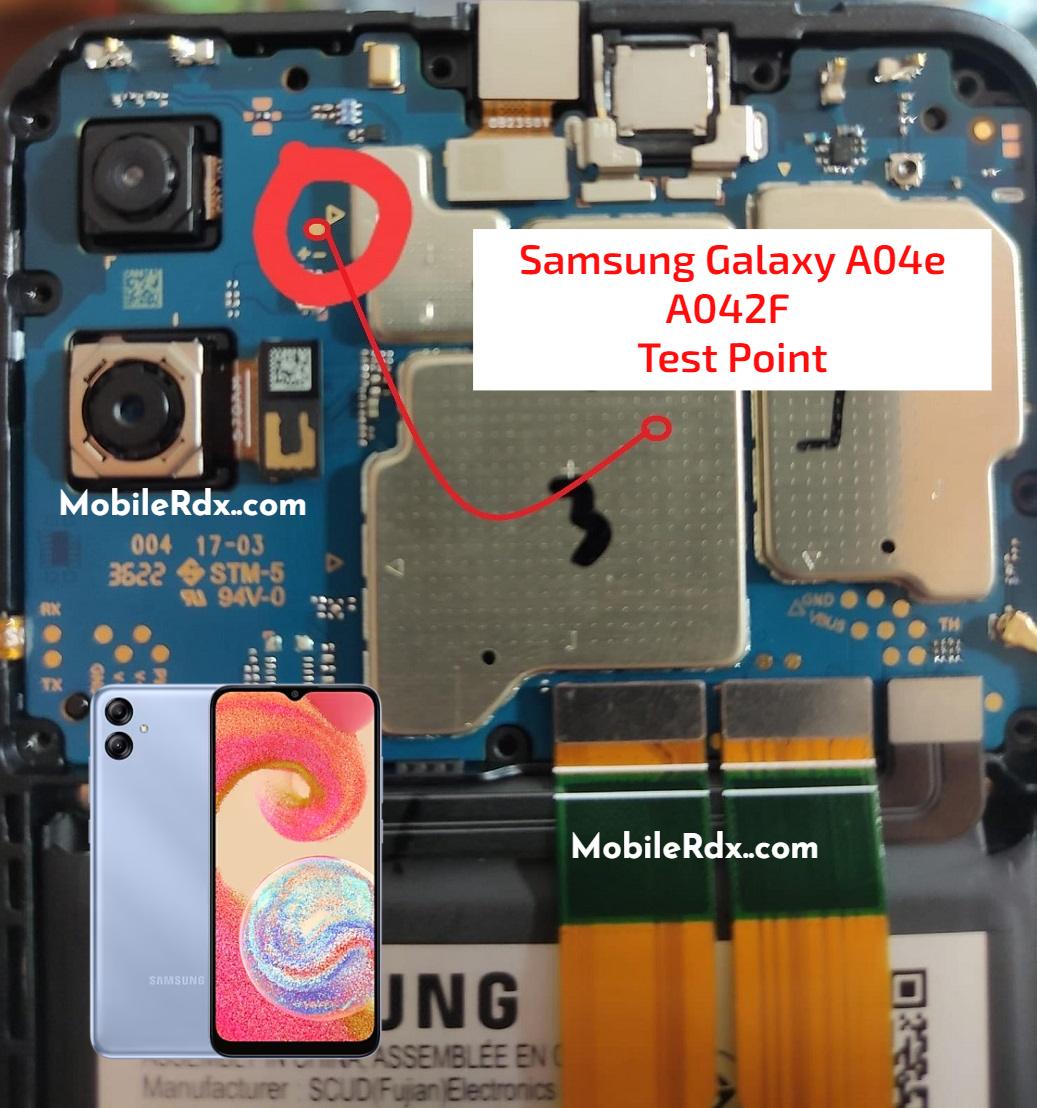

Samsung Galaxy A04e A042F Test Point to Remove Pattern FRP And Flashing
  • Remove the battery and Short bot points using any copper wire and attach a USB cable at the same time.
  • Now you are free to flash stock ROM on Samsung Galaxy A04e A042F mobile using any tool.

Uses Of Samsung Galaxy A04e A042F Test Point

MTK Test Point is a set of pins located on the motherboard of a device that uses a MediaTek (MTK) chipset. They allow for a direct connection between the device’s internal components and a computer. Here are some of the uses of MTK Test Point:
  • Install stock ROM on Samsung Galaxy A042F.
  • Flash Samsung Galaxy A04e  without unlocking the bootloader. Bootloader unlocking permission not required.
  • Recovery dead Samsung Galaxy A04e A042F by flashing firmware.
  • Install stock ROM easily, if the device is not able to boot into fastboot mode or device stuck on Samsung Logo.

What is Screen Lock for Samsung Galaxy A04e A042F:

Screen Lock is a security feature available on Samsung Galaxy A04e A042F that allows users to protect their device from unauthorized access. It is a privacy lock that requires the user to enter a password, pattern, pin, fingerprint, or facial recognition to access the device. Once the screen lock is enabled, the user needs to enter the correct credentials to unlock the device and access its features and data. Screen Lock provides an additional layer of security to your Samsung Galaxy A04e A042F, preventing unauthorized access and protecting your privacy.
