Vivo Y11 (1906) Test Point | Reboot to EDL Mode 9008

This guide is useful for those who have the Vivo Y11 (1906) smartphone. If you have encountered issues such as a bricked device, forgotten pattern lock, or unable to verify your Google account after a hard reset, it can help you bypass those issues quick.

Each and every phone comes with different developer options like Recovery mode, Fastboot mode/bootloader mode, and EDL mode. All these modes use to perform different testing processes. Some of them only can be used for advanced android users or developers or mobile repairing and some of them can be used by normal users.

How To Remove Vivo Y11 (1906) Pattern Lock and FRP:

There are various methods and tools that can be used to remove the FRP (Factory Reset Protection) and pattern lock from a Vivo Y11 (1906). Some of the tools that can be used include EFT Dongle, UMT Dongle, Octopus FRP Tool, and MRT Key Tool. Additionally, you can boot the device in emergency download mode by shorting the test point to the ground and connecting a USB cable. This can allow you to access the device and perform the necessary steps to remove the lock.

Vivo Y11 (1906) Test Point – Boot Poco F4 Into EDL Mode:

How To Find Vivo Y11 (1906) Test Point.

Install “Vivo Y11 Qualcomm USB Drivers” on a windows pc.
Remove back panel of the device carefully. Make sure you are not going to damage any hardware component.

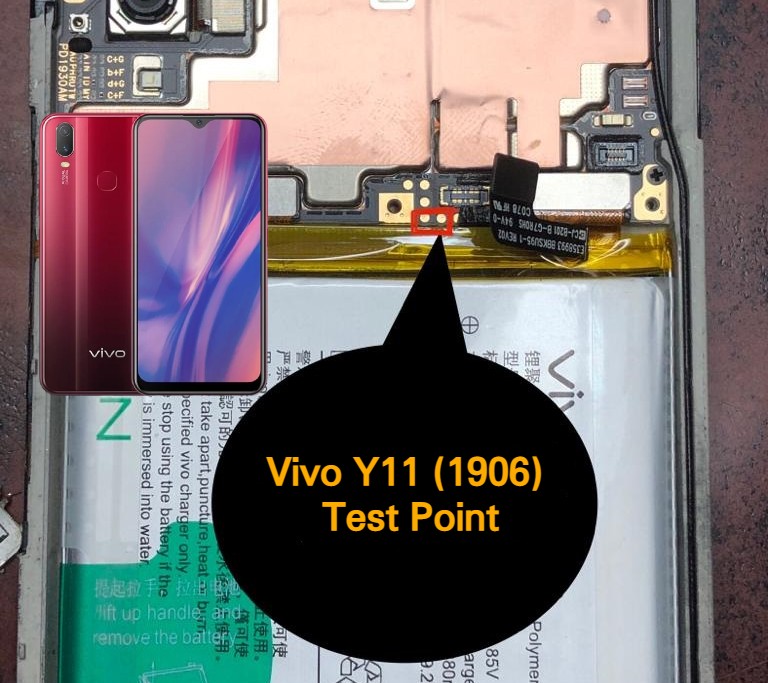

Now check the below screenshot and find the Vivo Y11 (1906) Test points.

Remove the battery and Short bot points using any copper wire and attach a USB cable at the same time.
Now you are free to flash stock ROM on Vivo Y11 (1906) mobile using any tool.

Uses Of Vivo Y11 (1906) Test Point

Reviving a bricked device through firmware flashing
Overcoming FRP lockout after factory reset
Unlocking the device after forgetting the pattern lock
Installing custom firmware for improved performance and customization
Debugging and testing hardware and software for issue resolution by technicians and developers.

Other Ways to Enter EDL Mode on Vivo Y11 (1906)

Follow the instruction below carefully to boot your device into EDL Mode (aka Emergency Download Mode)

Using Adb Mode

First, install ADB & Fastboot driver on PC and then turn on USB debugging on your phone.
Now connect your device with a PC using USB Driver.
Then open a command window in PC and paste following commands and hit enter.

adb reboot edl

If any pop up appears on the phone screen then allow the ADB access.

Fastboot mode

Download ADB and Fastboot Tool and extract it in your PC (C:/ Drive)
Boot your device into the bootloader
Open the command window on your PC on the same folder extracted (ADB and Fastboot Tool)
now enter the command
```
.\fastboot oem edl
```

Note: It’s just to understand that EDL mode flashing is a universal method for all Xiaomi devices. But EDL booting process may be different for different devices. For some devices, you can use the EDL boot command but problem is that nowadays edl command doesn’t work for all the latest Huawei smartphones. So the test point is the easiest and perfect method to boot any Xiaomi phone into EDL mode using the test terminal.
